Custom Multilayer PCB & SMT Assembly Flexible PCB Orders from Low Volume to Mass Production
Product Details
| Surface Finish: | ENIG (Electroless Nickel Immersion Gold), HASL (Hot - Air Solder Leveling), Etc. | Operating Temperature: | -40°C - 85°C |
|---|---|---|---|
| Number Of Layers: | From 4 - Up To 48 Layers | Certifications: | IPC, RoHS, UL, ISO9001, ISO14001,ISO13485,IATF16949 |
| Testing And Inspection: | Automated Optical Inspection (AOI), X-ray Inspection | Assembly Accuracy: | Tolerance Within ±0.05 - 0.1mm For Component Placement |
| Other Service: | We Can Help With The Procurement Of Electronic Components On Behalf Of Customers. | Cost Efficiency: | Competitive Pricing And Cost Reduction Strategies |
| Environmental Responsibility: | Sustainable Practices And Green Initiatives | Customization: | Tailored Solutions To Meet Customer's Specific Requirements |
| Manufacturing Capabilities: | PCB Assembly, Box Build Assembly, Cable And Wire Harness Assembly, Testing And Inspection | Quick Turnaround Time: | Rapid Prototyping And Fast Production Lead Times |
| Flexibility: | Ability To Handle Small To Large Production Volumes | ||
| Highlight |
Multilayer Flexible PCB orders,Multilayer SMT Assembly Flexible PCB |
||
Product Description
Multilayer PCB Manufacturing & SMT Assembly Services from Ring PCB
Professional PCB & PCBA Manufacturer with 17 Years of Experience
At Ring PCB, we specialize in multilayer PCB manufacturing and SMT assembly services for industries such as automotive, medical devices, telecommunications, industrial control, and consumer electronics. With 17 years of industry experience, we have become a trusted PCB manufacturer and EMS provider known for delivering high-quality, cost-effective, and fast-turnaround solutions.

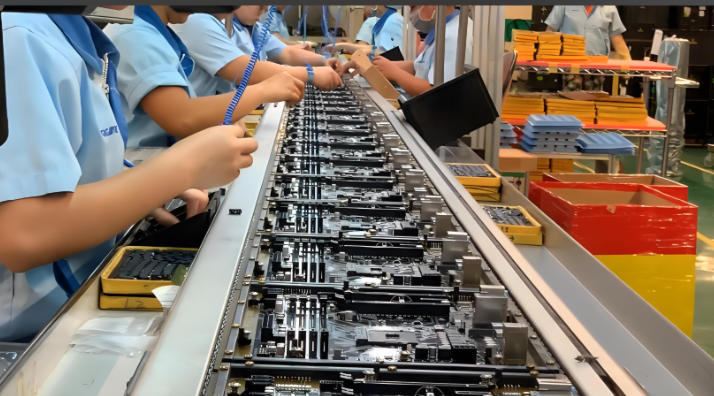

Our two self-owned factories in Shenzhen and Zhuhai, China, cover more than 5,000 square meters and are equipped with advanced SMT lines, automated inspection systems, and professional testing facilities. Supported by 500 skilled employees, Ring PCB handles prototyping, small-batch orders, and high-volume production with equal expertise.

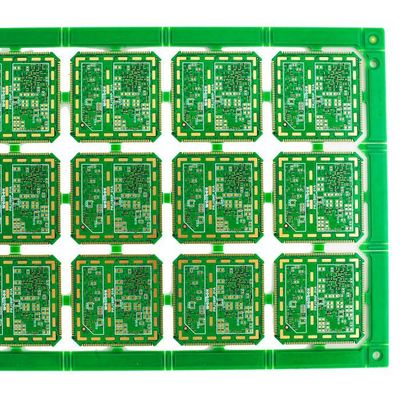

Multilayer PCB Manufacturing Capabilities
We provide customized multilayer PCB solutions to meet diverse application requirements.
| Parameter | Specification Range |
|---|---|
| Layers | 4 – 32 multilayer PCBs |
| Max Board Size | 600mm × 1200mm |
| Board Thickness | 0.2mm – 6.0mm |
| Copper Thickness | 0.5oz – 6oz |
| Min. Trace/Space | 3mil / 3mil (0.075mm) |
| Hole Size (PTH) | 0.15mm (drilling) |
| Surface Finish | HASL, ENIG, Immersion Tin, Immersion Silver, OSP, Gold plating |
| Materials | FR-4, High-Tg, Rogers, Aluminum, Polyimide, Halogen-free |
Our multilayer PCB technology delivers high-density interconnects, reliability, and optimized performance for advanced electronics.
SMT Assembly Services – Precision and Efficiency
Ring PCB offers comprehensive SMT assembly services to meet diverse assembly needs with precision and speed.
| Parameter | Specification / Capability |
|---|---|
| Component Size | 01005, 0201, BGA, QFN, CSP, fine-pitch ICs |
| Max PCB Size | 510mm × 460mm |
| Assembly Type | Single-sided & double-sided SMT assembly |
| Mixed Technology | SMT + Through-hole (THT) |
| Inspection Systems | AOI, X-ray, ICT, Functional Testing |
| Compliance | Lead-free, RoHS-compliant processes |
With 3-day prototyping and 7-day mass production, we help customers accelerate product development cycles and enter markets faster.
Quality You Can Trust
We are committed to delivering exceptional quality and reliability:
-
99% first-pass yield rate
-
100% on-time delivery qualification rate
-
Certified: UL, ISO9001, ISO14001, ISO13485, IATF16949
-
Compliance with international standards for safety, durability, and performance
Technical Challenges We Handle
Our engineering team solves complex PCB and PCBA challenges, including:
-
High-density multilayer PCB design with micro-vias and HDI structures
-
Fine-pitch SMT assembly for advanced ICs and high-frequency devices
-
Thermal management solutions for power and automotive applications
-
High-reliability PCB manufacturing for medical and aerospace industries
-
Customized PCB stack-ups and special material processing (Rogers, Polyimide, Aluminum)
Why Choose Ring PCB?
-
17 Years of Expertise – Deep experience in PCB manufacturing & assembly
-
Manufacturer Identity – Own factories in Shenzhen & Zhuhai for direct control
-
Flexible Orders – From prototypes to large-volume production
-
Global Reach – Products exported to 50+ countries and regions
-
Turnkey EMS Solutions – PCB fabrication, assembly, testing, and delivery
-
Customer Satisfaction – Long-term partnerships built on trust and quality
Partner with Ring PCB Today
Whether you need multilayer PCB prototyping, SMT assembly for small-batch orders, or full-scale EMS production, Ring PCB is your reliable partner in China. We provide cost-effective, high-quality, and fast-turnaround PCB & PCBA services to support your business growth.
Email: info@ringpcb.com
Website: https://www.turnkeypcb-assembly.com/
Ring PCB – Your Trusted Manufacturer for Multilayer PCB & SMT Assembly Services.
