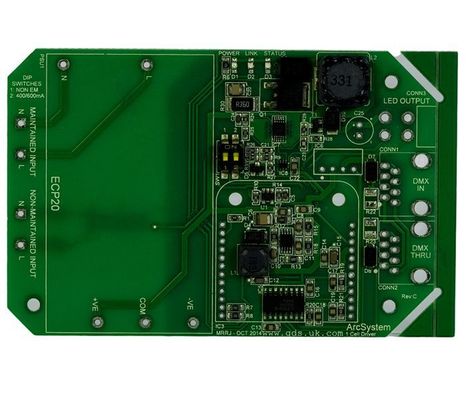

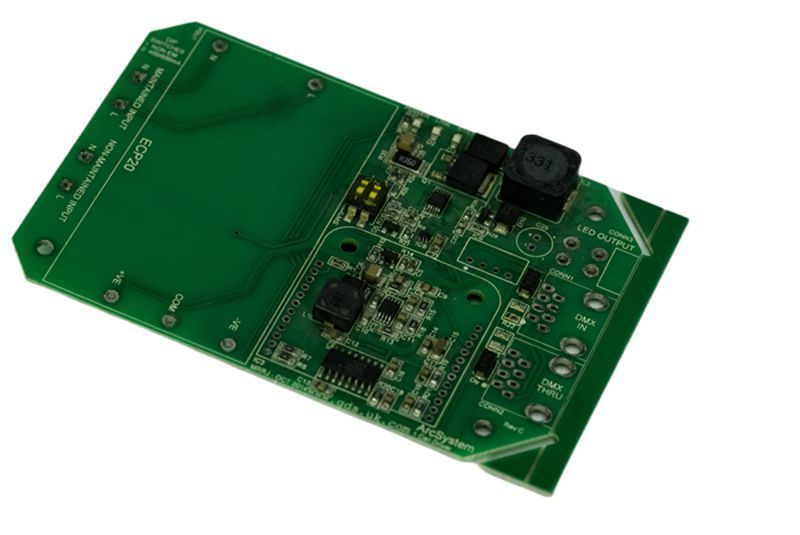

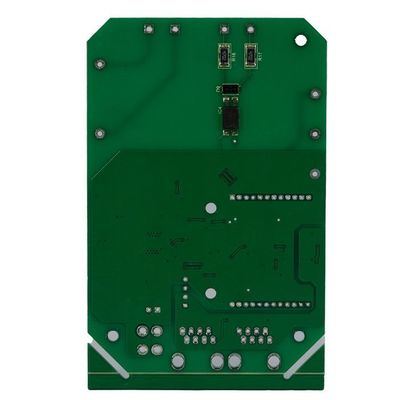

Here are the descriptions of product features for your customizable medical shadowless lamp mainboard PCBA :

Product Features

1. Medical-Grade Certification
Compliant with CE/FDA standards and medical device regulations for safe operation in OR environments.
2. High-Reliability Design
Redundancy circuits and fault-tolerant architecture to ensure continuous operation during critical procedures.
3. Precision LED Drive Control
Integrated PWM dimming and color temperature regulation (4000K–6500K) for uniform shadowless illumination.
4. Thermal Management Optimization
Metal-core PCB (MCPCB) or thermal vias for efficient heat dissipation in high-power LED modules.
5. EMC & Low Noise Performance
Shielded traces and anti-interference design to prevent disruptions to medical equipment and sensors.
6. Biocompatible & Halogen-Free Materials
FR-4 substrates compliant with RoHS/REACH, suitable for medical-grade environmental requirements.
7. Rigid PCB Construction
4–8 layer rigid board for mechanical stability in vibration-prone surgical setups.
8. Intelligent Control Interfaces
Support for RS-485/USB/PLC connectivity for remote dimming, fault monitoring, and system integration.
9. Customizable Design
Tailored to fit specific lamp models, with flexible layout for power modules, MCU, and driver circuits.
10. Sterilization-Resistant Layout
Design compatible with surrounding medical-grade sterilization processes (e.g., ethylene oxide, UV).


2. Challenges in Manufacturing Medical Equipment PCBA

1. Stringent Quality Standards

Medical equipment PCBA must meet rigorous quality and safety requirements, including certifications such as ISO 13485, FDA compliance, and IPC Class 3 standards. These regulations demand faultless production, robust traceability, and thorough testing processes.

3.How Ring PCB Solves It:

Certified Production Facility: Our factory in Shenzhen adheres to global standards, including ISO 13485, ensuring compliance with medical-grade manufacturing protocols.

Stringent Testing: We perform comprehensive testing at every stage, such as AOI (Automated Optical Inspection), ICT (In-Circuit Testing), and functional testing, to identify and resolve any issues before final assembly.

Traceability Systems: Each batch of PCBA is tracked with detailed documentation to meet regulatory requirements and provide complete transparency.

2. High-density Designs

Medical devices are becoming more compact and multifunctional, requiring high-density PCBs with features such as fine-pitch components, microvias, and multiple layers.

5.Application field:

Our customized PCBA for medical shadowless lamp mainboards can be applied in the following fields:
1. General Surgery
- In operations like appendectomies, cholecystectomies, and hernia repairs, the PCBA - powered shadowless lamps provide uniform and bright illumination. This ensures that surgeons can clearly observe tissues, blood vessels, and organs, accurately identify anatomical structures, and perform precise incisions, sutures, and dissections.
2. Orthopedic Surgery
- For procedures such as fracture fixation, joint replacement (e.g., hip and knee replacements), and spinal surgeries, the high - quality lighting enabled by the PCBA helps orthopedic surgeons to precisely position implants, align bones, and perform delicate procedures on the musculoskeletal system.
3. Neurosurgery
- Given the high - precision requirements of neurosurgical operations like brain tumor removal, aneurysm repair, and spinal cord surgeries, the shadowless lamps with our PCBA offer stable and shadow - free lighting. This allows neurosurgeons to clearly distinguish between different neural tissues, blood vessels, and lesions, minimizing the risk of damage to the nervous system.
4. Ophthalmic Surgery
- During eye surgeries, including cataract extraction, corneal transplantation, and retinal detachment repair, the accurate lighting provided by the shadowless lamp's PCBA is crucial. Surgeons need to perform extremely delicate operations on the small and complex structures of the eye, and the proper illumination helps them to ensure the success of the surgery.
5. ENT (Ear, Nose, and Throat) Surgery
- In surgeries such as tonsillectomies, sinus surgeries, and cochlear implantations, the shadowless lamp with our PCBA provides the necessary lighting. Surgeons can clearly visualize the narrow and complex cavities of the ear, nose, and throat, enabling them to perform accurate operations.

5.Here is a table of common technical parameters for Medical Equipment PCBA:

Why Choose Ring PCB?

Core Competencies & Advantages of Ring PCB Technolog

1. Direct Factory Pricing & Transparent Manufacturing

◦ Owned Shenzhen factory ensures source-level cost control and eliminates middleman markups.

◦ Invitation for factory visits to witness advanced equipment (e.g., automated SMT lines) and rigorous production processes firsthand.

2. One-Stop PCB & PCBA Expertise for End-to-End Solutions

◦ Comprehensive services from 2-48 layer PCB fabrication to components sourcing, SMT assembly, and full turnkey projects, eliminating the need for multiple vendors.

◦ 17+ years of industry experience (since 2008) with 500+ skilled employees, delivering 5,000+ electronic projects for 3,000+ global clients.

3. Stringent Quality Control with Advanced Inspections

◦ Multi-stage quality assurance: SPI 3D, AOI, LCR testing, and X-Ray for BGA components ensure zero-defect products.

◦ Certified compliance: IPC standards, RoHS, UL, ISO 9001/14001/13485, IATF16949—meeting medical, automotive, and industrial safety requirements.

4. Industry-Leading Capabilities & Customization

 Specialized in high-frequency, heavy copper, and complex PCBs for demanding sectors: communication base stations, medical devices, EV charging stations, robotics, etc.

 Tailored solutions for unique projects—from prototype to mass production, with rapid turnaround supported by in-house Shenzhen factory.

5. Reliable Partner for Diverse Applications

 Wide industry coverage: Security, industrial control, drones, servers, and more—proven track record in critical sectors requiring high reliability.

Incoming material inspection, real-time process monitoring, and final QC guarantee on-time delivery with consistent performance.

Ring PCB not only offers professional PCB manufacturing, but also offer PCBA service, including component sourcing and SMT service with Samsung functional machine.

  Convenience: One-stop service reduces supply chain complexity.
  Quality: Certifications and multi-inspections ensure product reliability.
  Speed: In-house production enables fast prototyping and delivery.
  Cost-Effectiveness: Direct factory pricing with no compromise on quality.
 Expertise: 17+ years supporting global clients across diverse industries.

Partner with Ring PCB Technology—where 17 years of expertise, end-to-end services, and certified quality meet your unique needs. Whether for prototyping or mass production, our Shenzhen factory ensures precision, speed, and factory-direct pricing. Contact us today to discuss your requirements !
