2-16 Layers Professional IoT PCB Assembly Reliable PCBA Manufacturing For Connected Devices

Customizable IoT PCB Assembly for Smart Devices: End-to-End Manufacturing Services

1.Product Features of IoT PCB Assembly

• High-Frequency Signal Integrity
• Supports advanced wireless protocols (5G, Wi-Fi 6E, Bluetooth 5.3) with precise impedance control and low dielectric loss materials like Rogers RO4003C.
• Ultra-Low Power Consumption
• Optimized for battery-driven devices (e.g., 8μA standby current) with power management ICs (PMICs) and sleep-mode circuit design.
• Miniaturization & High Density
• Integrates 01005/0201 passive components, system-in-package (SiP) technology, and HDI (High-Density Interconnect) for compact layouts.
• Flexible & Rigid-Flex Design
• Combines rigid FR-4 and flexible polyimide layers for curved devices (e.g., smartwatches).
• Thermal Management
• Copper cladding and heat spreaders reduce hotspot temperatures by 15-30% in high-power modules.
• Environmental Resilience
• Uses 3D coating and RoHS-compliant materials for salt fog, UV, and extreme temperature resistance.

2.Advantages of IoT PCB Assembly

• Rapid Time-to-MarketThree-month iteration cycles via flexible manufacturing lines (e.g., 10-minute changeover for small batches).
• Cost-Effective ScalabilityEliminates high-volume penalties with modular production (e.g., 100-100,000 units at similar costs).
• Signal ReliabilityHybrid stack-up and controlled impedance ensure <5% signal loss in 5G/mmWave applications.
• Green ManufacturingENIG/OSP finishes and halogen-free materials meet EU environmental standards.
• Multi-Domain CompatibilitySupports simultaneous operation of sensors, RF modules, and microcontrollers with EMI shielding.

3.Technical Challenges in IoT PCB Assembly

• Precision Soldering
• 01005 components require SPI (3D solder paste inspection) + AOI + X-ray for <5% voiding in BGA joints.
• High-Frequency Layout
• Millimeter-wave routing demands <10μm linewidths and hybrid laminates (e.g., Megtron 6 + Rogers).
• Thermal Expansion Control
• CTE mismatch between copper (17ppm/°C) and FR-4 (13ppm/°C) risks delamination in multi-layer boards.
• EMC Compliance
• Requires ground planes and differential pairs to mitigate interference between Wi-Fi and sensor signals.
• Material Selection
• Balancing dielectric constant (Dk) and cost: Rogers RO4003C (Dk=3.38) vs. standard FR-4 (Dk=4.4).

4.Technical Parameters of IoT PCBA

5.Application Areas of IoT PCBA

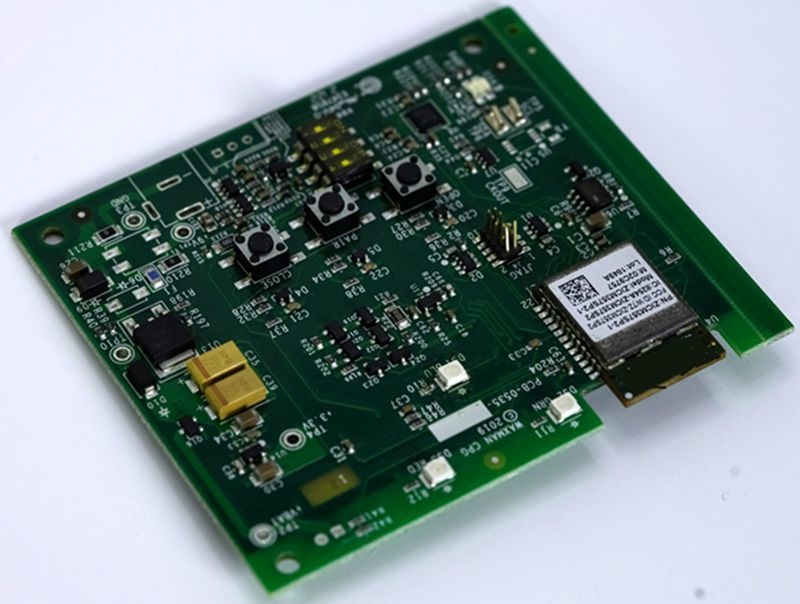

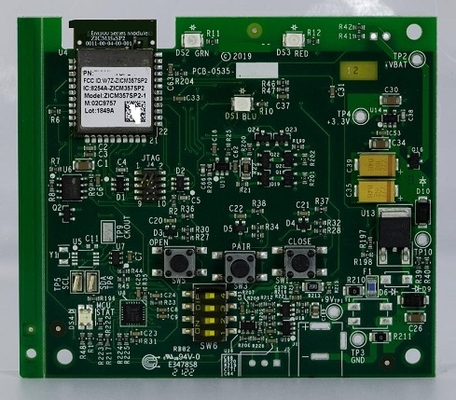

6.  This is Household water meter automatic control board PCB assembly

At Ring PCB,as a professional manufacturer and customizer of PCB and PCBA for over 17 years,we operate 5,000+㎡ modern self-owned factories in Shenzhen and Zhuhai, China, with a 500-strong team. All our PCB and PCBA products adhere to international industry standards. Need a prototype? We deliver in 3 days. Mass production? Ready in 7 days. Our solutions have reached over 50 countries and regions, backed by full-turnkey PCBA services tailored to your needs. Let’s collaborate—visit us at https://www.turnkeypcb-assembly.com/ to start your project.

Why Choose Ring PCB?

Core Competencies & Advantages of Ring PCB Technolog

1. Direct Factory Pricing & Transparent Manufacturing

◦ Owned Shenzhen factory ensures source-level cost control and eliminates middleman markups.

◦ Invitation for factory visits to witness advanced equipment (e.g., automated SMT lines) and rigorous production processes firsthand.

2. One-Stop PCB & PCBA Expertise for End-to-End Solutions

◦ Comprehensive services from 2-48 layer PCB fabrication to components sourcing, SMT assembly, and full turnkey projects, eliminating the need for multiple vendors.

◦ 17+ years of industry experience (since 2008) with 500+ skilled employees, delivering 5,000+ electronic projects for 3,000+ global clients.

3. Stringent Quality Control with Advanced Inspections

◦ Multi-stage quality assurance: SPI 3D, AOI, LCR testing, and X-Ray for BGA components ensure zero-defect products.

◦ Certified compliance: IPC standards, RoHS, UL, ISO 9001/14001/13485, IATF16949—meeting medical, automotive, and industrial safety requirements.

4. Industry-Leading Capabilities & Customization

 Specialized in high-frequency, heavy copper, and complex PCBs for demanding sectors: communication base stations, medical devices, EV charging stations, robotics, etc.

 Tailored solutions for unique projects—from prototype to mass production, with rapid turnaround supported by in-house Shenzhen factory.

5. Reliable Partner for Diverse Applications

 Wide industry coverage: Security, industrial control, drones, servers, and more—proven track record in critical sectors requiring high reliability.

Incoming material inspection, real-time process monitoring, and final QC guarantee on-time delivery with consistent performance.

Ring PCB not only offers professional PCB manufacturing, but also offer PCBA service, including component sourcing and SMT service with Samsung functional machine.

  Convenience: One-stop service reduces supply chain complexity.
  Quality: Certifications and multi-inspections ensure product reliability.
  Speed: In-house production enables fast prototyping and delivery.
  Cost-Effectiveness: Direct factory pricing with no compromise on quality.
 Expertise: 17+ years supporting global clients across diverse industries.

Partner with Ring PCB Technology—where 17 years of expertise, end-to-end services, and certified quality meet your unique needs. Whether for prototyping or mass production, our Shenzhen factory ensures precision, speed, and factory-direct pricing. Contact us today to discuss your requirements !
