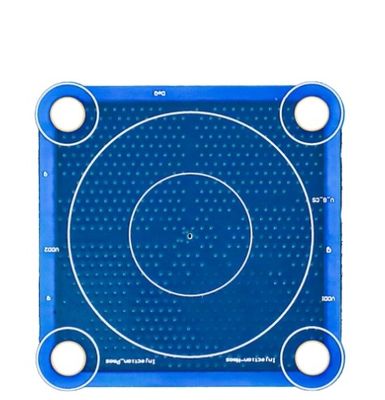

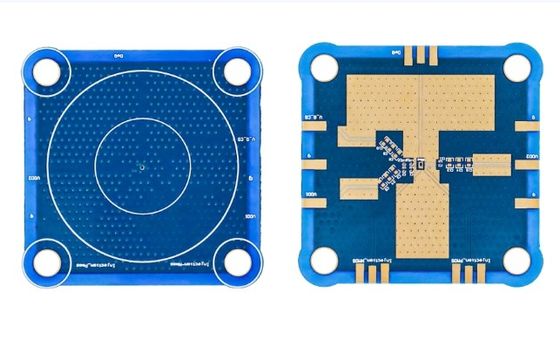

Product Description:

Our Multilayer PCB Manufacturing product offers top-quality custom PCB boards for a wide range of applications, including industrial PCB assembly and electronics PCB assembly. With a lead time of 3-5 days for prototype and 7-10 days for mass production, we ensure quick turnaround times to meet your project deadlines.

When it comes to testing and inspection, we utilize advanced technologies such as Automated 100% Optical Inspection (AOI) and X-ray Inspection to guarantee the reliability and quality of our multilayer PCBs. This stringent quality control process helps identify any defects or issues early on, ensuring that only flawless PCBs are delivered to our customers.

Flexibility is a key aspect of our service, as we have the capability to handle small to large production volumes based on your specific requirements. Whether you need a small batch of custom PCB boards for prototyping or a large-scale production run for commercial purposes, we can accommodate your needs with efficiency and precision.

With a minimum hole size of 0.2mm, our multilayer PCBs are designed to meet the most intricate and demanding specifications. This level of precision allows for the creation of complex PCB layouts while maintaining high levels of accuracy and performance.

For surface finish options, we offer a variety of choices including ENIG (Electroless Nickel Immersion Gold), HASL (Hot - Air Solder Leveling), and more. These surface finishes not only enhance the appearance of the PCBs but also provide excellent solderability and durability for long-term use.

Features:

• Product Name: Multilayer PCB Manufacturing
• Min. Hole Size: 0.2mm
• Material: FR-4, High Tg FR-4, Halogen-free, Rogers, Etc.
• Operating Temperature: -40°C - 85°C
• Lead Time: 3-5 Days For Prototype, 7-10 Days For Mass Production
• Testing And Inspection:
  • Automated 100% Optical Inspection (AOI)
  • X-ray Inspection

Technical Parameters:

Applications:

Ring PCB, a leading manufacturer of FR4 Multilayer PCBs, offers a versatile product suitable for a wide range of applications across various industries. With its headquarters in Shenzhen, China, Ring PCB caters to both OEM and ODM requirements, providing high-quality PCBs tailored to meet specific needs.

Designed to meet the demands of custom PCB assembly, Ring PCB's Multilayer PCB manufacturing capabilities are ideal for industrial PCB assembly projects. The use of materials such as FR-4, High Tg FR-4, and Halogen-free options ensures reliability and durability even in challenging environments.

Whether it's for telecommunications, automotive, medical devices, or other industrial applications, Ring PCB's Multilayer PCBs excel in performance and quality. The precise Min. Line Width/Spacing of 3/3mil ensures intricate designs can be achieved, meeting the most demanding specifications.

Operating within a wide temperature range of -40°C to 85°C, Ring PCB's Multilayer PCBs are well-suited for applications that require stability in harsh conditions. The use of advanced materials like Rogers further enhances the thermal and electrical performance of the PCBs.

Customers can rely on Ring PCB for quick turnaround times, with a Lead Time of 3-5 days for prototypes and 7-10 days for mass production orders. This expedited process ensures that projects stay on schedule without compromising on quality.

When it comes to Surface Mount Technology, Ring PCB offers state-of-the-art solutions to meet modern assembly requirements. Whether it's for small-scale prototypes or large-scale production runs, Ring PCB's Multilayer PCBs are equipped to handle the latest SMT processes.

Support and Services:

Our Multilayer PCB Manufacturing product comes with comprehensive Product Technical Support and Services to assist you in optimizing your manufacturing processes. Our team of experts is available to provide guidance on product specifications, troubleshooting, and best practices to ensure smooth operation.

Our technical support includes assistance with product installation, setup, and configuration. We also offer ongoing support to address any issues that may arise during the manufacturing process. Our goal is to help you maximize the performance and efficiency of your PCB manufacturing operations.

In addition to technical support, we provide a range of services to enhance the overall experience of using our Multilayer PCB Manufacturing product. These services may include training programs, customizations, and consultations to meet your specific needs and requirements.

FAQ:

Q: What is the brand name of the Multilayer PCB Manufacturing product?

A: The brand name is Ring PCB or OEM and ODM.

Q: Where is the Multilayer PCB Manufacturing product manufactured?

A: The product is manufactured in Shenzhen, China.

Q: Can custom designs be accommodated for the Multilayer PCB Manufacturing product?

A: Yes, both Ring PCB and OEM and ODM options allow for custom designs.

Q: What is the typical lead time for the Multilayer PCB Manufacturing product?

A: The lead time can vary, but typically ranges from X to Y weeks depending on the order size and specifications.

Q: Are there any specific certifications associated with the Multilayer PCB Manufacturing product?

A: The product may come with certifications such as ISO XXXX, ensuring quality standards are met.
