Custom Multilayer PCB Fabrication with SMT Assembly and Turnkey PCBA Services
Product Details
| Surface Finish: | ENIG (Electroless Nickel Immersion Gold), HASL (Hot - Air Solder Leveling), Etc. | Operating Temperature: | -40°C - 85°C |
|---|---|---|---|
| Number Of Layers: | From 2 - Up To 48 Layers | Certifications: | IPC, RoHS, UL, ISO9001, ISO14001,ISO13485,IATF16949 |
| Testing And Inspection: | Automated Optical Inspection (AOI), X-ray Inspection | Assembly Accuracy: | Tolerance Within ±0.05 - 0.1mm For Component Placement |
| Other Service: | We Can Help With The Procurement Of Electronic Components On Behalf Of Customers. | Cost Efficiency: | Competitive Pricing And Cost Reduction Strategies |
| Environmental Responsibility: | Sustainable Practices And Green Initiatives | Customization: | Tailored Solutions To Meet Customer's Specific Requirements |
| Manufacturing Capabilities: | PCB Assembly, Box Build Assembly, Cable And Wire Harness Assembly, Testing And Inspection | Quick Turnaround Time: | Rapid Prototyping And Fast Production Lead Times |
| Flexibility: | Ability To Handle Small To Large Production Volumes | ||
| Highlight |
custom multilayer PCB fabrication,SMT assembly PCB services,turnkey PCBA manufacturing services |
||
Product Description
Ring PCB: High-Density Multilayer PCB Manufacturing & One-Stop PCB Assembly Services
What Is a Multilayer PCB?
A multilayer PCB (Printed Circuit Board) is a circuit board that consists of three or more conductive copper layers laminated together with insulating materials. Compared with single-layer or double-sided boards, multilayer PCBs enable higher circuit density, better signal integrity, and improved electrical performance.

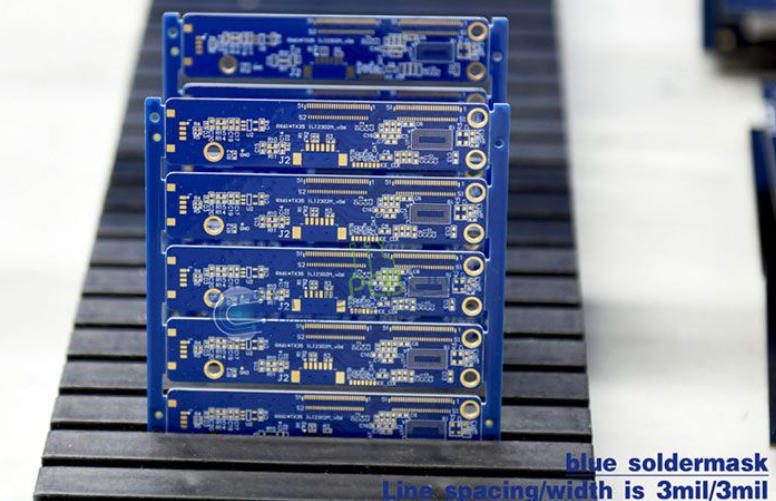

Based on the image shown, this multilayer PCB features fine line spacing (3mil/3mil), compact layout, and blue solder mask, indicating its suitability for high-speed, high-density, and precision electronic applications.
At Ring PCB, we specialize in printed circuit board manufacturing & PCB assembly, offering fully customized multilayer PCB and PCBA solutions for a wide range of industries.
Key Features and Advantages of Multilayer PCB
Multilayer PCBs play a critical role in modern electronics due to their technical and structural advantages:
1. High Circuit Density
By stacking multiple conductive layers, multilayer PCBs support complex circuit designs within a compact footprint, ideal for space-constrained products.
2. Excellent Signal Integrity
Dedicated power and ground planes reduce electromagnetic interference (EMI) and ensure stable signal transmission, especially in high-speed applications.
3. Improved Reliability
Multilayer construction enhances mechanical strength and thermal stability, making the board suitable for long-term operation in industrial and automotive environments.
4. Optimized Thermal Management
Advanced layer stack-ups help distribute heat evenly, improving overall system reliability.
5. Customization Flexibility
Through custom printed circuit board manufacturing, multilayer PCBs can be tailored in terms of materials, copper thickness, layer count, and surface finish.
These advantages make multilayer PCBs essential in industrial electronics, communication systems, medical devices, and automotive electronics.
Technical Challenges in Multilayer PCB Manufacturing
Manufacturing high-quality multilayer PCBs involves several technical challenges:
-
Precise layer alignment and lamination control
-
Fine line etching and high-density interconnection accuracy
-
Controlled impedance for high-speed signal routing
-
Strict quality inspection to avoid internal defects
With 17 years of industry experience, Ring PCB has developed mature processes and advanced equipment to overcome these challenges, ensuring stable quality in both prototype and mass production.
Typical Technical Parameters of Multilayer PCB (For Reference Only)
Note: The following specifications are for reference. Actual parameters can be fully customized based on design requirements.
| Parameter | Typical Range |
|---|---|
| Layer Count | 4 – 16 Layers |
| Minimum Line Width/Spacing | 3mil / 3mil |
| Board Thickness | 0.8mm – 3.2mm |
| Copper Thickness | 1oz – 6oz |
| Surface Finish | ENIG, HASL, OSP, Immersion Silver |
| Solder Mask Color | Blue, Green, Black (Customizable) |
| Material | FR-4, High-Tg FR-4, Rogers |
| Impedance Control | Supported |
| Application Fields | Industrial, Medical, Telecom, Automotive |
One-Stop Service for PCB and PCBA
Ring PCB provides a One-Stop Service for PCB and PCBA, covering the entire manufacturing lifecycle:
-
Printed Circuit Board Manufacturing
-
SMT & THT PCB Assembly
-
Component sourcing and BOM management
-
Functional testing and quality inspection
-
Full-turnkey PCBA solutions
We support ODM, OEM, and EMS (Electronic Manufacturing Services), enabling customers to focus on product development while we handle manufacturing and assembly with high efficiency.
Here is a photo of a customized Printed Circuit Board we had manufactured for our client.
Why Choose Ring PCB?
Ring PCB is a professional Printed Circuit Board Manufacturing & PCB Assembly company with strong production capability and global service experience:
-
17 years of PCB & PCBA industry experience
-
500 skilled employees
-
5,000+㎡ self-owned modern factories in Shenzhen & Zhuhai, China
-
International certifications: ISO9001, ISO14001, ISO13485, IATF16949
-
Fast turnaround: 3-day PCB prototyping, 7-day mass production
-
Products exported to over 50 countries and regions
-
Fully customized full-turnkey PCBA solutions for various industries
Whether you need high-density multilayer PCBs or complete assembly services, Ring PCB is your reliable manufacturing partner.
Contact Us
If you are looking for a trusted partner for multilayer printed circuit board manufacturing and PCB assembly, Ring PCB is ready to support your projects with professional solutions.
Email: info@ringpcb.com
Website: https://www.turnkeypcb-assembly.com
We look forward to cooperating with you.
