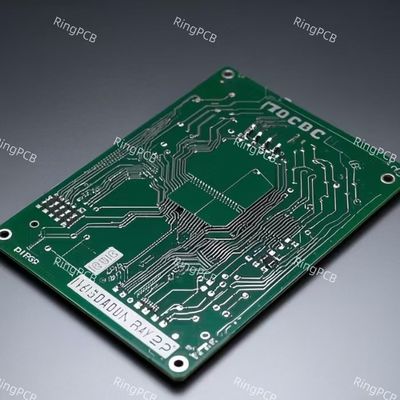

Product Description:

Our Multilayer PCB Manufacturing product offers a comprehensive solution for Electronics PCB Assembly, Industrial PCB Assembly, and various other industrial applications. With advanced Surface Mount Technology capabilities, we ensure efficient and precise assembly of electronic components on the PCBs.

The Multilayer PCBs feature a variety of Surface Finishes to meet different requirements. Options include ENIG (Electroless Nickel Immersion Gold) for excellent conductivity and corrosion resistance, HASL (Hot - Air Solder Leveling) for cost-effective solutions, and many more. These surface finishes enhance the solderability and overall performance of the PCBs in diverse applications.

Designed to meet specific needs, our Multilayer PCBs offer flexibility in Copper Thickness ranging from 0.5oz to 6oz. This range allows for customization based on the desired electrical conductivity and heat dissipation requirements of the application. Whether it's for complex industrial equipment or high-performance electronics, our PCBs can be tailored to meet the demands of various projects.

With a Min. Hole Size of 0.2mm, our Multilayer PCBs support intricate designs and miniaturized components. This level of precision enables the creation of compact and densely populated PCBs suitable for modern electronic devices and industrial systems that require space-efficient solutions.

Our Multilayer PCB Manufacturing service covers a wide range of options in terms of the Number of Layers, from 2 to 48 Layers. Whether you need a simple double-sided PCB or a complex multilayered board for advanced applications, we have the expertise and capabilities to deliver high-quality PCBs that meet your specifications.

By combining advanced manufacturing processes, top-quality materials, and strict quality control measures, we ensure that our Multilayer PCBs meet the highest standards of performance and reliability. Whether it's for Electronics PCB Assembly, Industrial PCB Assembly, or any other industrial application, our PCBs are designed to provide optimal functionality and durability.

Features:

• Product Name: Multilayer PCB Manufacturing
• Operating Temperature: -40°C - 85°C
• Min. Line Width/Spacing: 3/3mil
• Lead Time: 3-5 Days For Prototype, 7-10 Days For Mass Production
• Testing And Inspection:
  • Automated 100% Optical Inspection (AOI)
  • X-ray Inspection
• Number of Layers: 2-48 Layers

Technical Parameters:

Applications:

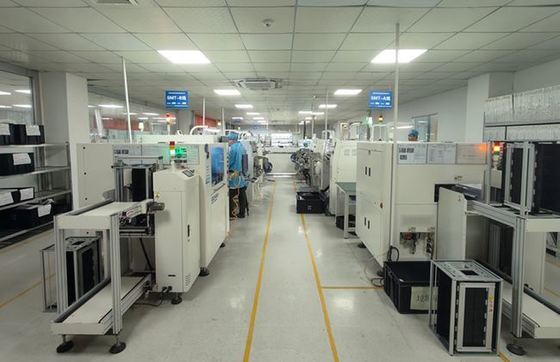

Ring PCB, or OEM and ODM, offers top-quality FR4 Multilayer PCB manufacturing services from our state-of-the-art facilities in Shenzhen, China. Our quick lead times of 3-5 days for prototypes and 7-10 days for mass production make us the ideal choice for Electronic PCB Assembly projects with tight deadlines.

Our Multilayer PCBs are designed to withstand extreme operating temperatures ranging from -40°C to 85°C, ensuring reliability in various environmental conditions. With a minimum line width/spacing of 3/3mil, our boards are suitable for intricate Custom PCB Assembly requirements that demand precision and high performance.

Whether you need a 2-layer board for a simple circuit or a complex 48-layer board for advanced applications, Ring PCB can meet your needs with our advanced manufacturing capabilities. Our testing and inspection processes include Automated 100% Optical Inspection (AOI) and X-ray Inspection, guaranteeing the quality and reliability of every board that leaves our facility.

Our Multilayer PCBs are perfect for a wide range of product application occasions and scenarios, including but not limited to:

• Telecommunications equipment
• Industrial control systems
• Medical devices
• Aerospace technology
• Automotive electronics

Whether you are developing cutting-edge electronics for the aerospace industry or require reliable PCBs for automotive applications, Ring PCB's Multilayer PCB manufacturing services can cater to your specific requirements. Trust us to deliver high-quality boards that meet your exact specifications and exceed your expectations.

Support and Services:

Our Multilayer PCB Manufacturing product offers comprehensive Product Technical Support and Services to ensure the smooth operation and optimal performance of your PCBs. Our team of experienced technicians is available to provide assistance with installation, troubleshooting, and maintenance. Additionally, we offer training programs to help you make the most of our product and stay up-to-date with the latest technologies and best practices in PCB manufacturing.

FAQ:

A: The brand name is Ring PCB or OEM and ODM.

Q: Where is the Multilayer PCB Manufacturing product manufactured?

A: The product is manufactured in Shenzhen, China.

Q: How many layers are available for the Multilayer PCB Manufacturing product?

A: The product offers various layer options to suit different requirements, ranging from 4 layers to 16 layers.

Q: Can custom designs be accommodated for the Multilayer PCB Manufacturing product?

A: Yes, we offer OEM and ODM services to cater to custom design specifications.

Q: What is the typical lead time for ordering Multilayer PCB Manufacturing products?

A: The lead time for orders varies depending on the quantity and complexity of the design, typically ranging from 5 to 20 working days.
