Rigid PCB for LED Ring Light Modules

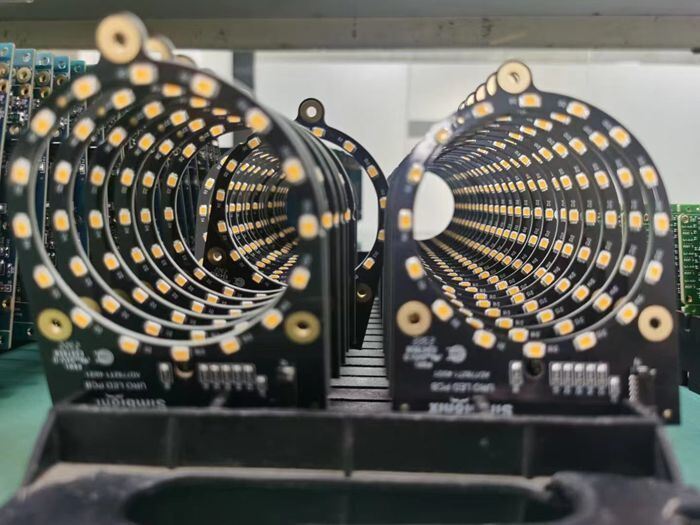

This Rigid Printed Circuit Board (Rigid PCB) is designed for high-density LED ring light applications, offering excellent mechanical stability, precise circuit layout, and reliable electrical performance. The circular board structure enables uniform light distribution, making it ideal for industrial illumination and imaging systems.

Manufactured using high-quality FR-4 substrate, the PCB ensures strong rigidity and dimensional stability during assembly and long-term operation. The board supports surface-mount LED components (SMD LEDs) with optimized copper traces for consistent current flow and thermal performance. A black solder mask finish enhances light contrast and improves optical efficiency in lighting applications.

The Rigid PCB features accurate drilling and smooth board edges, supporting automated assembly and high-volume production. It is compatible with various surface finishes and can be customized in terms of layer count, board thickness, copper weight, and solder mask color to meet different project requirements.

Key Features

• Rigid FR-4 PCB construction

• Circular LED ring design

• High-density SMD LED layout

• Excellent mechanical strength and stability

• Suitable for automated SMT assembly

• Customizable specifications available

Typical Applications

• LED ring lights

• Industrial vision lighting systems

• Machine inspection equipment

• Photography and imaging illumination

• Precision optical devices
