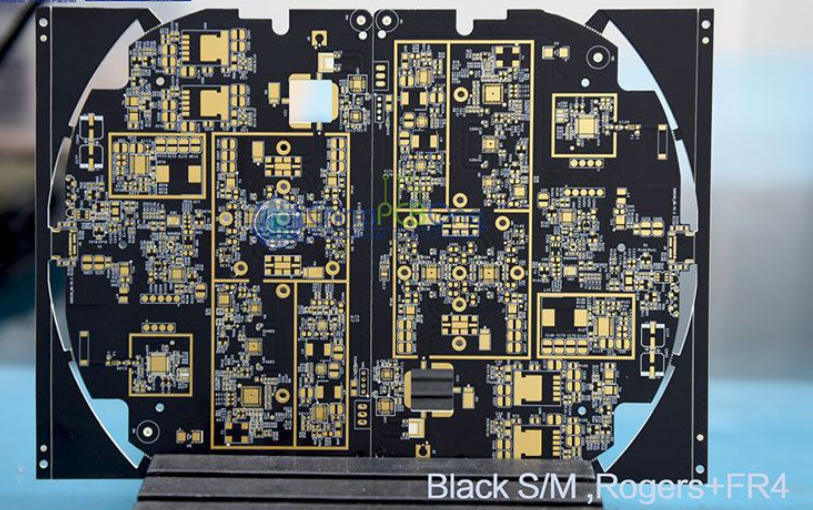

Special Process for PCB FR4 Multilayer Printed Circuit Board Assembly solution

Ring PCB, your PCB & PCBA Turnkey Solutions | Professional Circuit Manufacturing Expert


1.What Are Special PCBs?

Special PCBs refer to printed circuit boards designed for specific applications that go beyond the scope of standard PCB manufacturing. These boards often require unique materials, advanced design techniques, or specialized manufacturing processes to meet the stringent demands of high-performance industries. Special PCBs are often used in applications that, high-frequency operation, flexibility, or durability under extreme conditions.

2.Types of Special PCBs Ring PCB Offers

Heavy Copper PCBs: Designed for high-power applications where robust current carrying capacity and superior heat dissipation are required.

Flexible PCBs: Used in compact, bendable devices such as medical equipment, wearables, and automotive electronics.

Rigid-Flex PCBs: A hybrid of rigid and flexible PCBs for applications requiring both flexibility and structural integrity.

High-Frequency PCBs: Used for RF and microwave circuits where signal integrity is critical, often built with materials like Rogers or Taconic.

HDI PCBs (High-Density Interconnect): Featuring finer lines, smaller vias, and higher connection density for advanced electronics.

Metal Core PCBs: Used in applications where heat management is vital, such as LED lighting.

Goldfinger PCBs: With gold-plated connectors on their edges, they are often used in applications where the PCB must endure repeated connections and disconnections.

If you are interested in our Heavy copper PCB circuit boards, please provide your customized needs, we will complete the sample production within 7 working days, and complete mass production and delivery within 15 working days.

3.Challenges in Special PCB Manufacturing

Flexible PCBs face issues such as warping and tearing of flexible substrates like polyimide, cracking of thin copper traces during bending, and difficulties in aligning multiple layers.

Ring PCB addresses these by using precision laser cutting and tension-control systems to protect delicate materials, applying strain-relief techniques like teardrops to prevent cracking, and employing rigorous layer alignment technologies for high accuracy.

Rigid-Flex PCBs require seamless bonding between rigid and flexible layers without delamination. Managing impedance control, bending areas, and transitions between materials is complex, as is ensuring structural integrity during assembly.

Ring PCB uses advanced adhesive systems and pressing techniques to ensure strong bonding, optimizes stack-ups and transitions for reliability, and utilizes customized fixtures during assembly to maintain PCB integrity.

High-Frequency PCBs require careful material selection, as laminates like Rogers and Taconic demand precise handling. Maintaining signal integrity and managing thermal expansion are significant challenges.

Ring PCB excels by working with high-frequency materials using precise drilling and routing methods, employing advanced impedance control tools, and addressing thermal expansion mismatches through optimized stack-up designs.

HDI PCBs challenge manufacturers with fine line and space requirements, microvia creation, and high layer count complexities.

Ring PCB employs laser direct imaging (LDI) for ultra-fine traces, uses laser drilling machines for precise microvias, and ensures perfect layer alignment through advanced lamination processes and automated optical inspection.

Metal Core PCBs (MCPCBs) need efficient heat dissipation, precise machining of metal cores, and robust insulation between copper layers and the core.

Ring PCB optimizes thermal vias and metal cores for superior heat transfer, uses specialized machinery for precise routing and drilling, and employs advanced dielectric materials to ensure insulation reliability.

Goldfinger PCBs involve challenges like achieving precise selective plating, consistent edge beveling, and ensuring gold layer durability.

Ring PCB applies hard gold accurately using selective electroplating, achieves smooth connector edges through automated edge-beveling machines, and maintains rigorous quality control to meet wear-resistance standards.

5.Applications of  Special PCBs

Special PCBs are widely used in various high - tech fields, including telecommunications, computer systems, aerospace, and defense, Medical devices,Automotive,ect.

At Ring PCB, we don’t just manufacture products—we deliver innovation. With all kinds of PCB Boards, combined with our PCB, PCB Assembly, and turn-key services, we empower your projects to thrive. Whether you need prototyping or mass production, our expert team ensures top-quality results.

17 Years of Excellence | Self-Owned Factory | End-to-End Technical Support
Core Advantage 1: Advanced Engineering for Precision PCB Manufacturing
• High-Density Stack-Up: 2-48 layer boards with blind/buried vias, 3/3mil trace/spacing, ±7% impedance control, ideal for 5G, industrial control, medical devices, and automotive electronics.
• Smart Manufacturing: Self-owned facility equipped with LDI laser exposure, vacuum lamination, and flying probe testers, adhering to IPC-6012 Class 3 standards.

Core Advantage 2: Integrated PCBA Services | One-Stop Turnkey Solutions
✓ Full Assembly Support: PCB fabrication + component sourcing + SMT assembly + functional testing.
✓ DFM/DFA Optimization: Expert engineering team reduces design risks and BOM costs.
✓ Rigorous Quality Control: X-ray inspection, AOI testing, and 100% functional validation for zero-defect delivery.

Core Advantage 3: Self-Owned Factory with Full Supply Chain Control
✓ Vertical Integration: Raw material procurement, production, and testing fully managed in-house.
✓ Triple Quality Assurance : AOI + impedance testing + thermal cycling, defect rate <0.2% (industry average: <1%).
✓ Global Certifications: ISO9001, IATF16949 and RoHS compliance.

Ring PCB not only offers professional PCB manufacturing, but also offer PCBA assembly service, including component sourcing and SMT service with Samsung functional machine.

One of our core strengths lies in our 8-stage lead-free reflow soldering and lead-free wave soldering capabilities at our Shenzhen factory. These advanced soldering processes ensure high-quality assembly while adhering to global environmental standards, such as ISO9001, IATF16949 ,RoHS compliance.

Please note:

All products in our store are processing customized services, please be sure to contact our professional customer service before placing an order to confirm the product details.

All photos on this site are real. Due to changes in lighting, shooting Angle, and display resolution, the image you see may have some degree of chromatic aberration. Thank you for your understanding.

Ring PCB Technology Co.,Limited is a professional PCB manufacturer with 17 years of history in China.

Our products are updated and upgraded every year and we specialize in all kinds of PCB making and PCBA customization services, If you are interested in our products, please tell us your requirements, we will help you to provide professional solutions, please contact us on line or E-mail to us info@ringpcb.com, and we will provide you with one-on-one service from our professional sales team.

Thank you for your time.
