Customized FR-4 Industrial Device PCB Assembly Quick Turn Circuit Boards Manufacturing

Customized PCB And PCB Manufacturer FR-4 muti-layers industrial device PCB Circuit Board Manufacturing And Assembly

1.Product Features and Advantages
(1) Industrial-Grade Reliability
Designed for harsh environments with high resistance to dust, moisture, vibration, and temperature fluctuations (-40°C to +85°C), ensuring stable operation in industrial settings.
 Adopts high-quality FR-4 or metal-core PCB materials with excellent electrical insulation and thermal conductivity.
(2) Robust Signal Processing
 Integrates high-performance microcontrollers and wireless modules (e.g., RF, Bluetooth, ZigBee) for reliable long-distance signal transmission (up to 100 meters+), with anti-interference algorithms to minimize signal loss.
Supports real-time feedback and error correction for precise control commands.
(3) Compact and Rigid Structure
 Rigid PCB design offers mechanical stability, preventing deformation in heavy machinery or mobile applications.
 High-density component placement enables miniaturization while maintaining durability.
(4) Long Lifespan and Low Maintenance
Uses lead-free soldering and surface mount technology (SMT) for high reliability, reducing failure rates and maintenance costs over the product lifecycle.

2.Technical Challenges

(1) Electromagnetic Interference (EMI) Suppression
Industrial environments often have strong electromagnetic fields, requiring advanced shielding designs (e.g., grounded copper planes, ferrite beads) to prevent signal distortion.
(2) Thermal Management
High-power components (e.g., amplifiers, microprocessors) generate heat, necessitating thermal via structures or heat sinks to avoid overheating and performance degradation.
(3)Miniaturization vs. Functionality
 Balancing compact size with integrated features (e.g., multiple control channels, safety circuits) requires advanced PCB layout techniques (e.g., multi-layer boards, buried vias).
(4) Certification and Compliance
 Meeting industrial standards (e.g., CE, UL, ISO 13849 for functional safety) demands rigorous testing for EMC, safety, and environmental durability.


3.Technical Parameters & Customization Services

(1) Common Technical Parameters

(2) Customization Services

Service Commitment

• Technical Support: Dedicated engineering team for DFM (Design for Manufacturing) consultation and PCB layout optimization.
• Rapid Prototyping: 3-7 days for sample production (urgent orders available).
• Volume Production: ISO-certified manufacturing lines ensuring consistency from prototype to mass production.

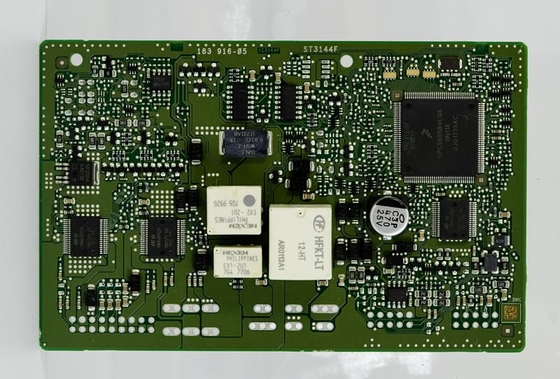

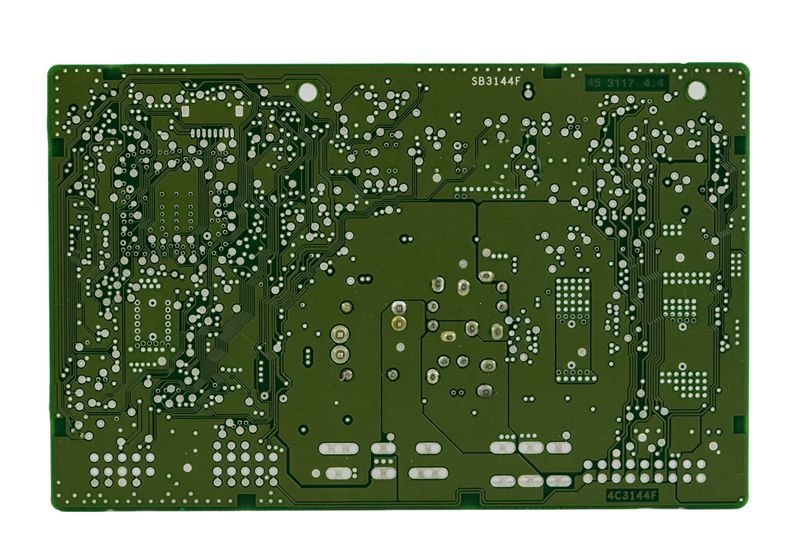

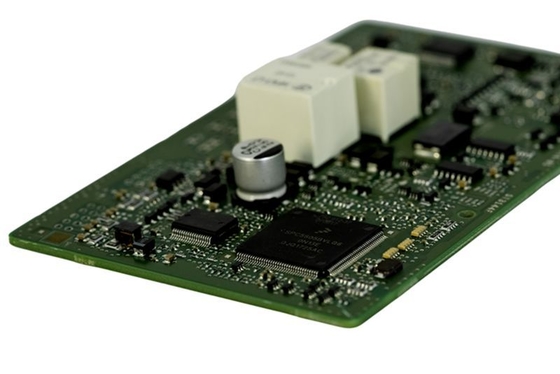

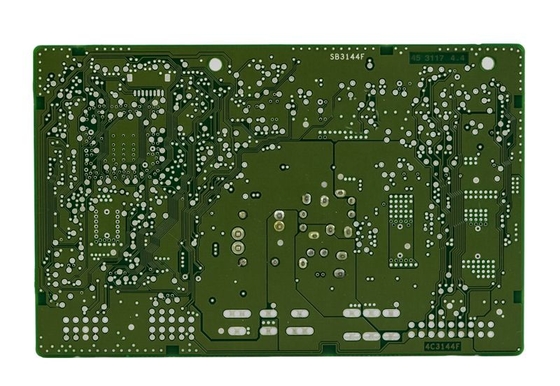

Here are the  pictures of Automatic control data operation core PCB assembly

At Ring PCB, we don’t just manufacture products—we deliver innovation. With all kinds of PCB Boards, combined with our PCB, PCB Assembly, and turn-key services, we empower your projects to thrive. Whether you need prototyping or mass production, our expert team ensures top-quality results and help you to save money and time.

17 Years of Excellence | Self-Owned Factory | End-to-End Technical Support
Core Advantage 1: Advanced Engineering for Precision PCB Manufacturing
• High-Density Stack-Up: 2-48 layer boards with blind/buried vias, 3/3mil trace/spacing, ±7% impedance control, ideal for 5G, industrial control, medical devices, and automotive electronics.
• Smart Manufacturing: Self-owned facility equipped with LDI laser exposure, vacuum lamination, and flying probe testers, adhering to IPC-6012 Class 3 standards.

Core Advantage 2: Integrated PCBA Services | One-Stop Turnkey Solutions
✓ Full Assembly Support: PCB fabrication + component sourcing + SMT assembly + functional testing.
✓ DFM/DFA Optimization: Expert engineering team reduces design risks and BOM costs.
✓ Rigorous Quality Control: X-ray inspection, AOI testing, and 100% functional validation for zero-defect delivery.

Core Advantage 3: Self-Owned Factory with Full Supply Chain Control
✓ Vertical Integration: Raw material procurement, production, and testing fully managed in-house.
✓ Triple Quality Assurance : AOI + impedance testing + thermal cycling, defect rate <0.2% (industry average: <1%).
✓ Global Certifications: ISO9001, IATF16949 and RoHS compliance.

Ring PCB not only offers professional PCB manufacturing, but also offer PCBA service, including component sourcing and SMT service with Samsung functional machine.

One of our core strengths lies in our 8-stage lead-free reflow soldering and lead-free wave soldering capabilities at our Shenzhen factory. These advanced soldering processes ensure high-quality assembly while adhering to global environmental standards, such as ISO9001, IATF16949 ,RoHS compliance.
